Description
- Constructed from heavy duty steel with brass pin and bushing, plus grease fitting.
- Compact, strong and reliable.
- Multiple sizes to fit your application
- Ideal for trailer doors/gates, tool cabinets, and other enclosures.

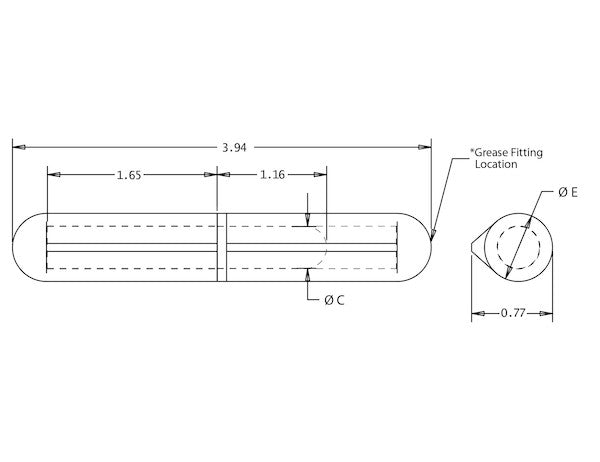

Technical Information
- Finish: Plain
- Material: Carbon Steel
- Mounting Type: Weld
- Thickness: 0.77 "
- Hinge Length: 3.94 "
- Pin Diameter: 20.39 "
- Thickness: 0.77 "
- Diameter: 0.63 "
- Pin Length A: 1.65 "
- Pin Length B: 1.16 "
- Pin Diameter: 0.39 "
- Pin Material: Brass
- Bushing Material: Brass
- With Grease Fitting: Yes
