Description

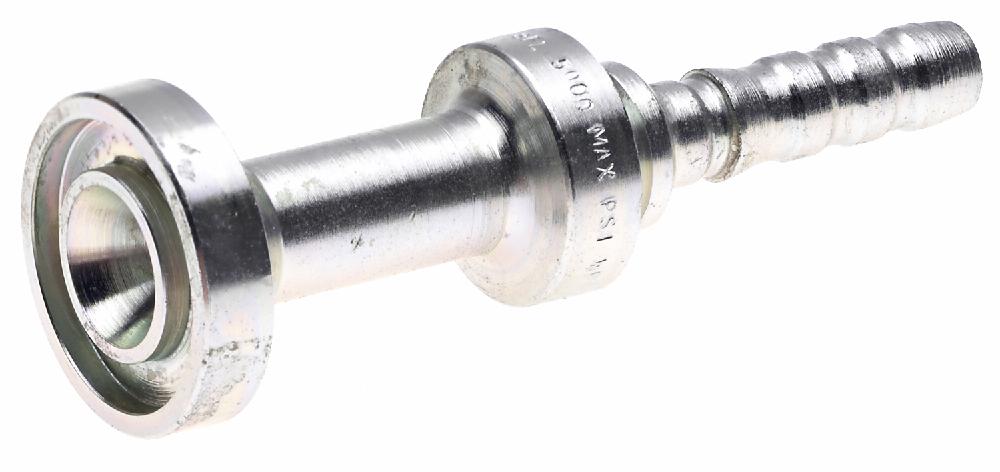

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.5 lbs
- Size: 12GS-12FL
- Length: 4.37
- Length: 111
- Flange Diameter: 38.1
- Flange Diameter: 1.5
- Flange Thickness: .27
- Flange Thickness: 6.9
- Coupling Description: GlobalSpiral Code 61 O-Ring Flange
- Cut Off (in) - C: 2.36
- Cut Off (mm) - C: 60
- Flange Diameter (in) - M: 1.5
- Flange Diameter (mm) - M: 38.1
- Flange Head Thickness (in) - F: .27
- Flange Head Thickness (mm) - F: 6.9
- Hose Inside Diameter (in): .75
- Hose Inside Diameter (mm): 19.1
- Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
- Industrial Description: 12GS-12FL
- Length (in) - L: 4.37
- Length (mm) - L: 111
- Maximum Working Pressure (psi): 5000
