Description
$175 Core Charge is Included in Price

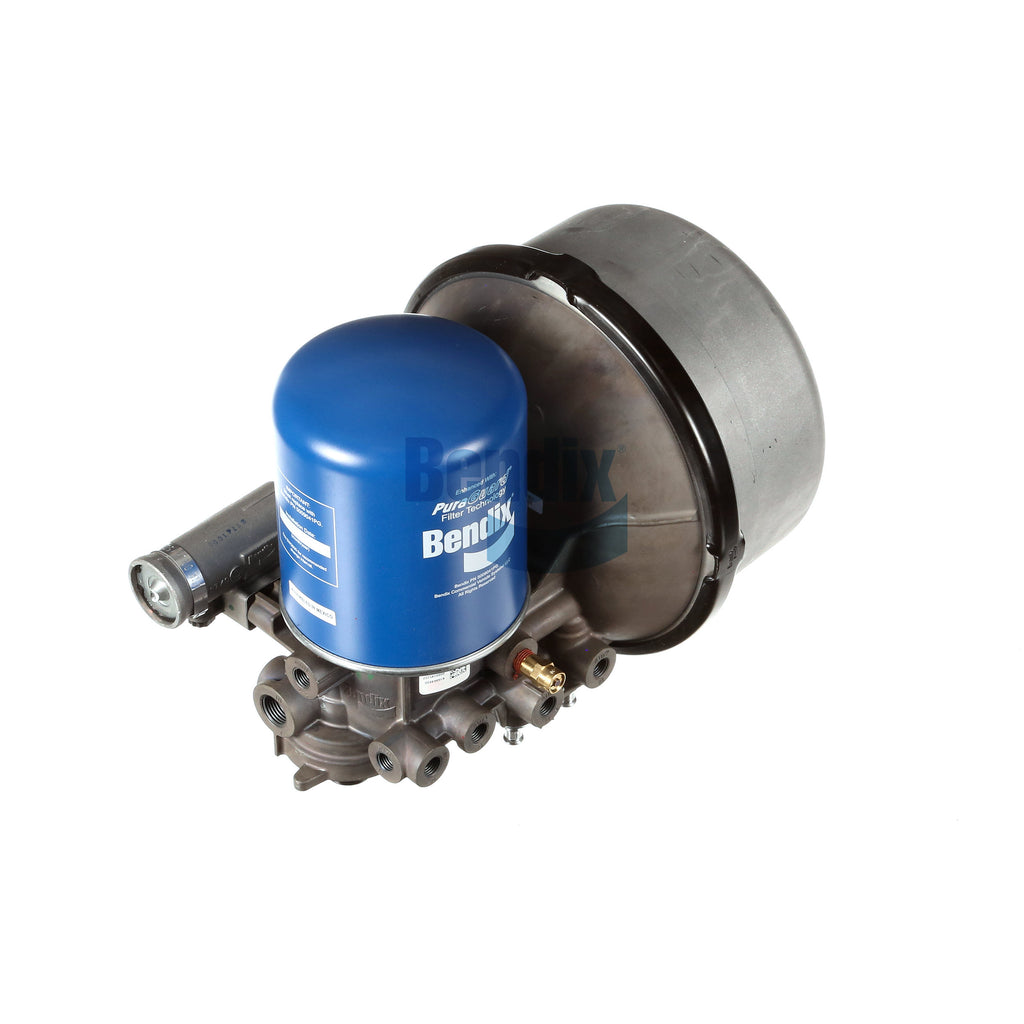

- Air Dryer Type: Stand-Alone
- Mounting: Purge Reservoir - 3/8-16 UNC-2B (4x)
- Supply Port: 1/2-14 NPT
- Governor Unloader Port: 1/8-27 NPT (Plugged)
- Governor Reservoir Port: 1/8-27 NPT (Plugged)
- Compressor Unloader Port: 1/4-18 NPT
- Remote Charge / Fill Port (through Desiccant): 1/4-18 NPT
- Remote Charge / Fill Port 1 (after Desiccant): 1/4-18 NPT
- Remote Charge / Fill Port 2 (after Desiccant): 1/4-18 NPT (with Safety Valve)
- PRI Delivery Port 21: 1/4-18 NPT
- PRI Delivery Opening Pressure: 103 PSI
- SEC Delivery Port 22: 1/4-18 NPT
- SEC Delivery Opening Pressure: 112 PSI
- AUX 1 Delivery Port 1: 1/4-18 NPT
- AUX 1 Delivery Port 2: 1/4-18 NPT
- AUX 1 Delivery Port 3: 1/4-18 NPT
- AUX 1 Delivery Port 4: 1/4-18 NPT
- AUX 1 Delivery Opening Pressure: 112 PSI
- AUX 2 Delivery Port: 1/4-18 NPT
- AUX 2 Delivery Opening Pressure: 112 PSI
- Purge Exhaust Port: Standard
- Purge Volume: Extended
- Purge Valve Type: Hard Seat
- Safety Valve Opening Pressure: 153 PSI
- Heater / Thermostat Rating: 12V / 90W
- Heater Connector Type: Metri-Pack 280 Series 2-Way Sealed Connector (Male)
- Heater Connector Color: White
- Cartridge Type: PuraGuard (Coalescing)
- Cartridge Thread: M41 x 1.5-6H RH
- Clearance to Remove Cartridge: 1.00 IN
- Governor Included: Yes
- Governor Type: Non-Adjustable
- Cut-in Pressure: 110 PSI
- Cut-out Pressure: 130 PSI
- Pressure Protection Valve Configuration: 4 in Parallel
- Reservoir Diameter: Ø 10.2 IN
- Reservoir Length: 6.35 IN
- Reservoir Material: Aluminum
- Number of Compartments: 1
- Reservoir Fill Type: Integral Fill
- Maximum Inlet Temperature: 160 °F (71 °C)
- Minimum Operating Temperature: -40 °F (-40 °C)
- Cautionary Note(s): Non-serviceable clamp band. Do not remove.
