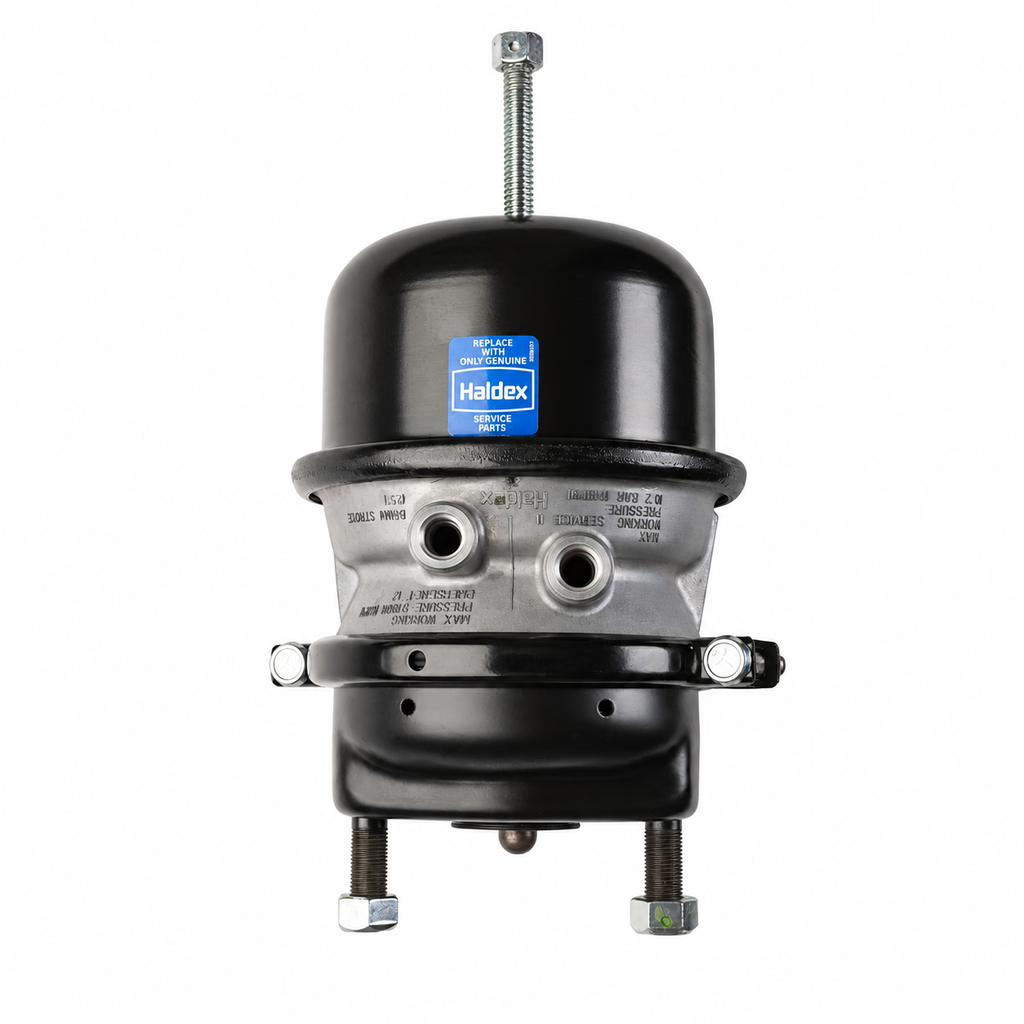

Description
- Actuator Type Size: 2430
- Stroke Type: Standard
- Available Stroke: 2.5"
- Pushrod Threads: Ball End
- Weight: 19.8 LBS
- A - Length from mounting bracket to end of Spring Housing: 9.04"
- B - Length of Piggyback: 6.42"
- C - Dimension at rolled Spring Housing flange: 8.19"
- D - Dimension at Service Clampband: 9.41"
- E - Stud Spacing: 4.75"
- J - Pushrod Length from face of Service Housing: .59"
- K - Distance to Clevis Pin centerline from face of Service Housing: N/A
- S1 - Service Clampband position: 160°
- T - Air Port position: 90°
